Noodle production system


Fully automated instant noodle production equipment designed for mass production of various types of instant noodles such as cup/bowl type noodles, fresh noodle etc. Providing highly efficient productivity, low oil usage characterizes the equipment. Furthermore, various capacity and tailored process designs are available upon specific requirements.
BulletBag type noodles
Bag type noodle, Nongshim Shin Ramyun

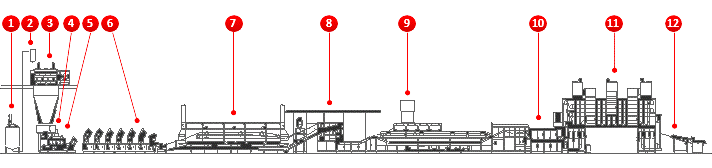

1. mixed water solution tank
2. hodling bin
3. dough mixer
4. round feeder
5. compound roller
6. continuous roller & slitter
7. 3 stage steamer
8. cut & folding machine
9. fryer
10. cushion conveyor
11. cooler
12. infeed device
BulletCup/Bowl type noodles
Instant Cup and Bowl noodles

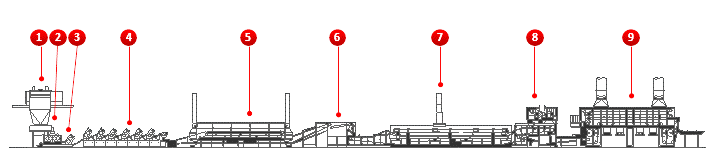

1. dough mixer
2. dough feeder
3. continuous roller
4. continuous roller & slitter
5. 3stage steamer
6. cutting machine
7. fryer
8. oil seperator
9. cooler
BulletJapanese style fresh boiled noodles
Japanese style boiled noodles

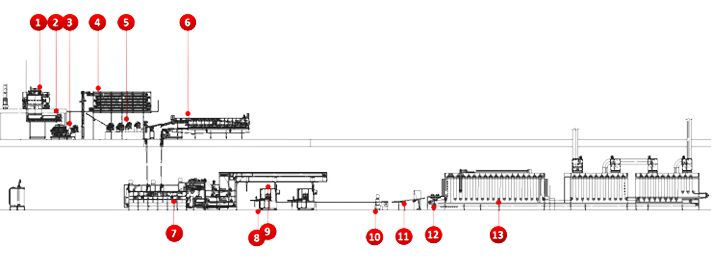

1. vacuum mixer
2. dough feeding conveyor
3. compound roller
4. aging conveyor
5. continuous roller
6. 2 stage steamer
7. cooker
8. pouch packing machine
9. printer
10. check weigher
11. channelizer
12. sterilizer feeding system
13. .sterilizer & cooker
BulletOther noodle production systems

Contact us for more information
